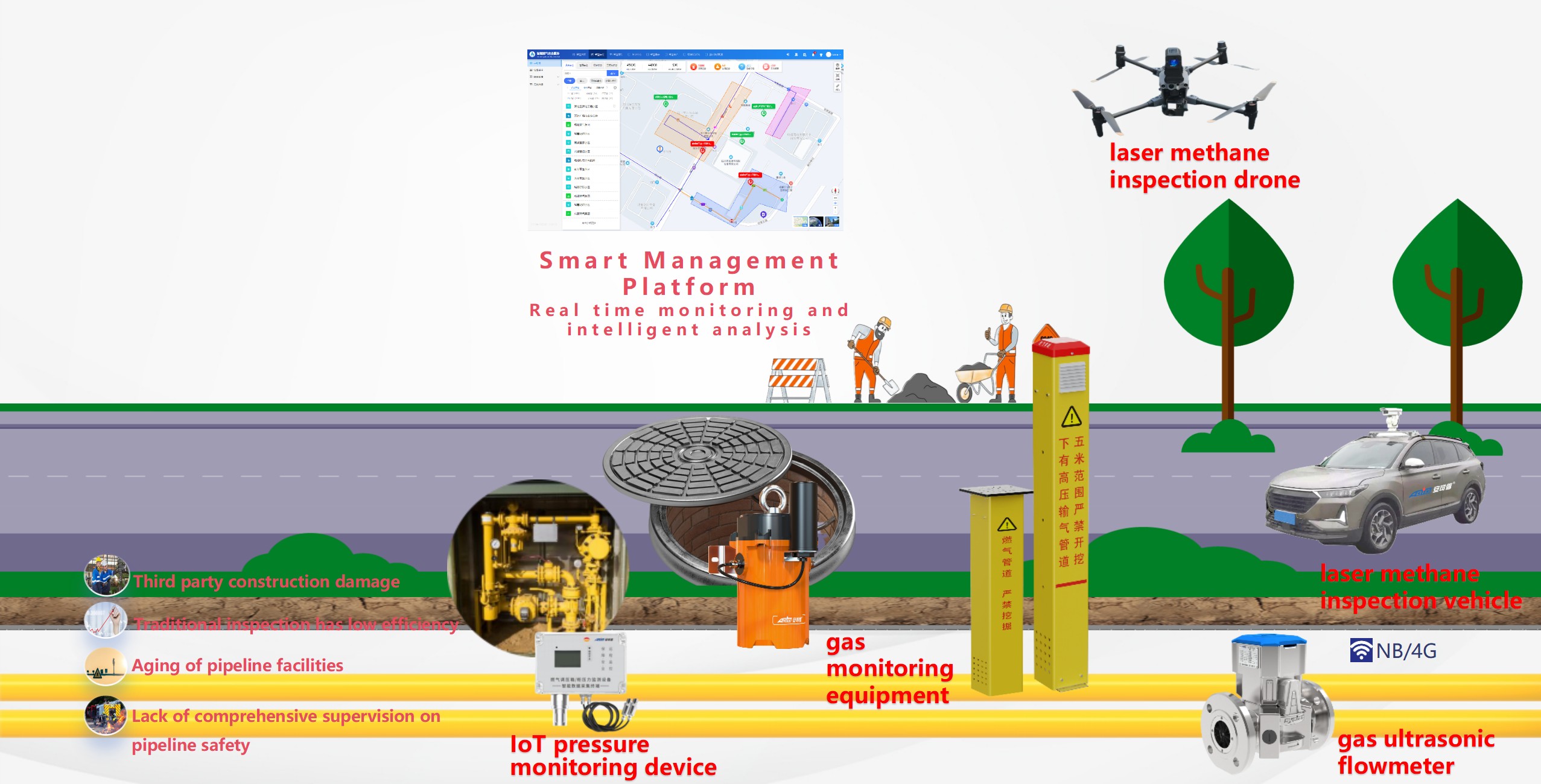

1. Overview of the Solution and Pain Point Analysis
Program Overview: A tripartite monitoring and support capability integrating ground, land, and air assets, featuring centralized management of diversified information fusion.
The four major challenges in gas pipeline network regulation:
● Construction damage caused by third parties: Excavation activities and other construction operations can easily damage pipelines.
● Traditional inspection methods are inefficient—manual inspections have limited coverage and low efficiency.
● Aging of pipeline infrastructure – increased risks of corrosion and leakage in outdated pipelines
● There is a lack of comprehensive supervision over pipeline network safety, with various monitoring methods operating in isolation.

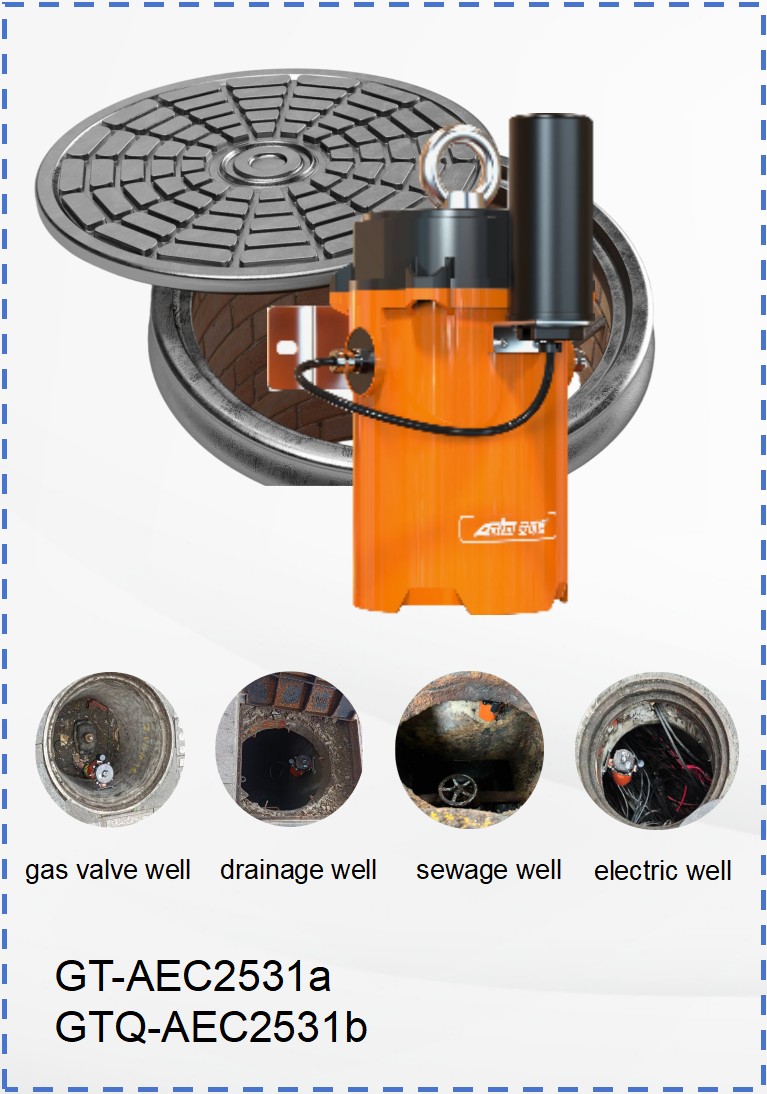

2.Gas Leakage Monitoring in Underground Valve Wells
Product: Underground pipeline gas leak detector (for valve wells, drainage wells, sewage wells, and power wells)
| model | fixed position | Core Functions |
| GT-AEC2531a | normalized form | Laser methane detection |
| GT-AEC2531b | enhancement mode | Laser Methane + Multi-parameter Analysis |
| G-AEC2531pro | Professional | High Precision + Full Functionality |
| G-AEC2531Ultra | Flagship Model | Top configuration + full functionality |
▮ Laser Sensing Technology
✓ TDLAS laser sensor, with a service life of 10 years
✓ Advanced temperature control algorithm and anti-condensation chamber
▮ Fully wireless long-range flight
✓ Built-in high-capacity battery, lasting ≥3 years
✓ Fully wireless and cable-free, supports OTA updates
▮ Extreme Environmental Reliability
✓ IP68 ultra-high protection: withstands submersion in 1.1-meter water depth for up to 60 days
✓ Temperature range: -40°C to 70°C, compliant with explosion-proof requirements
✓ HarmonyOS with intelligent anti-theft and liquid level detection alarm
▮ Multiple Alarms and Expansion
✓ Multi-channel reporting via platform, app, SMS, or phone
✓ Resume download when connection drops; integrates positioning, anti-theft, tilt detection, and water resistance features

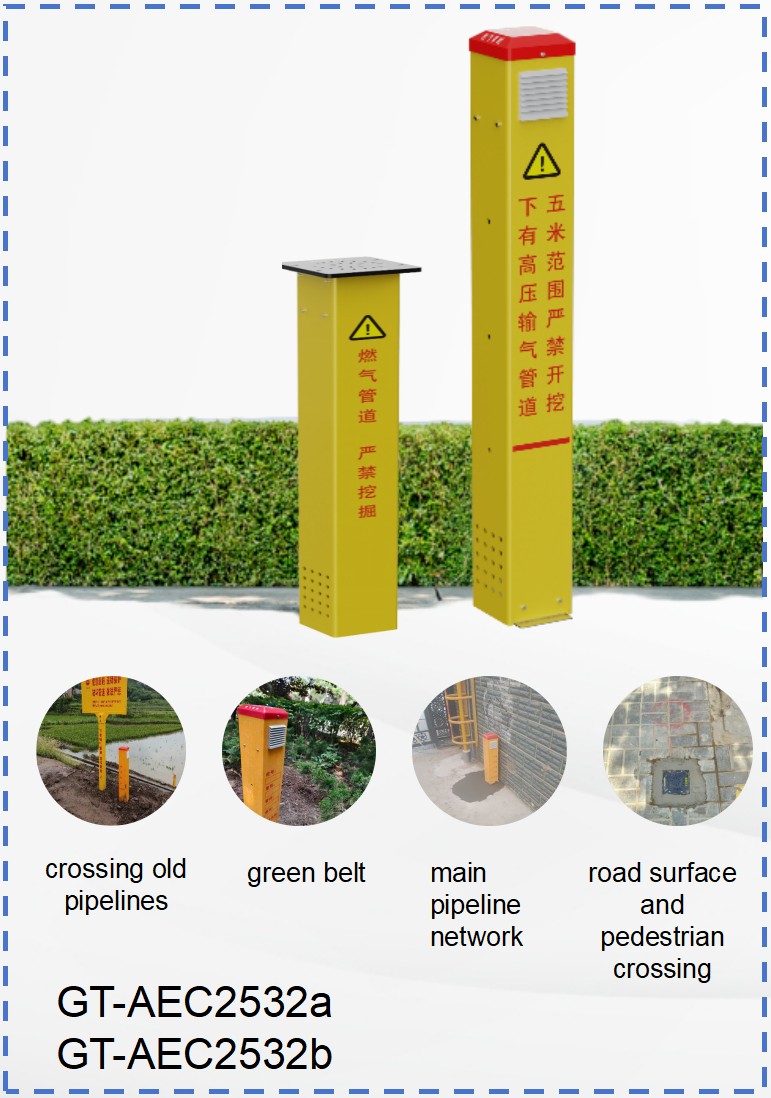

3.Safety Monitoring Along the Pipeline Network
| model | Installation Method | Core Functions |
| GT-AEC2532a | Columnar | Laser gas + vibration monitoring |
| GT-AEC2532b | Buried underground | Laser gas + vibration monitoring |
| G-AEC2532pro | Column Specialization | Solar Energy + Video Surveillance |
| G-AEC2532Ultra | Flagship Model with Pillars | Full-function top configuration |
▮ Dual Monitoring of Gas and Vibration
✓ Laser gas sensing + vibration monitoring
✓ Accurate methane detection + vibration sensing within 25 meters during construction
▮ Long-term maintenance-free
✓ High-capacity battery: ≥3 years; sensors: 5 years
✓ IP68 protection; solar power option available

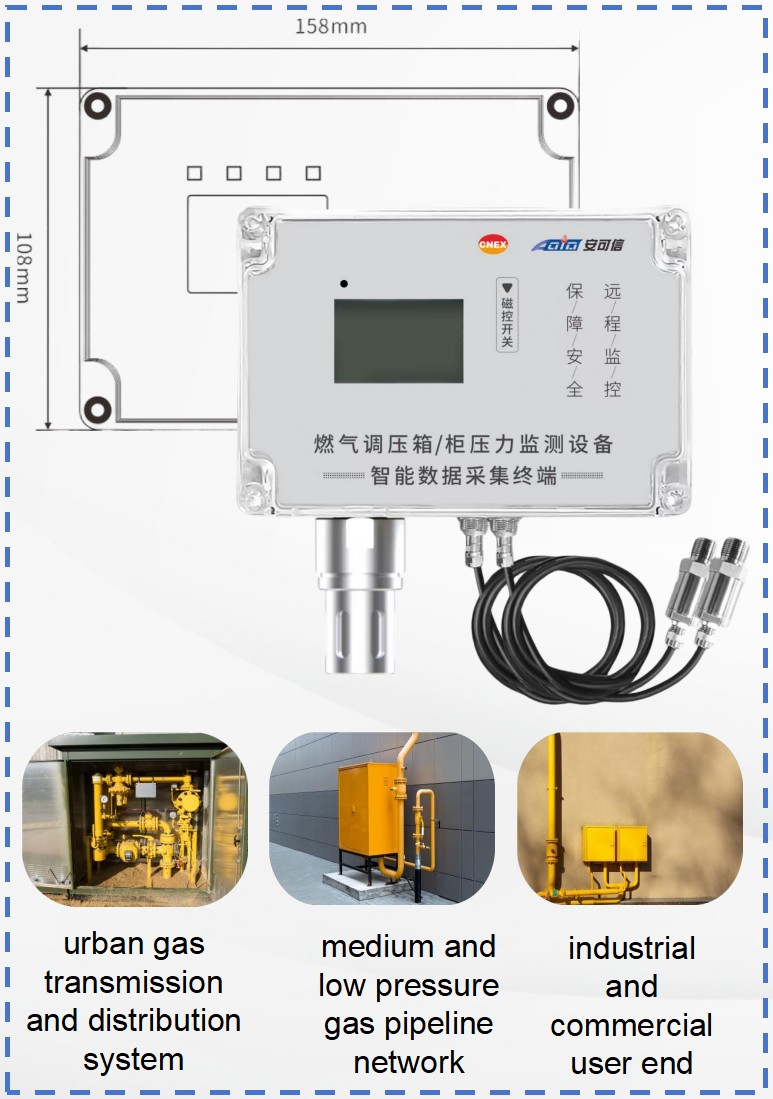

4.Comprehensive Monitoring of Voltage Regulation Stations/Boxes
▮ Monitoring is precise and comprehensive
✓ Dual detection of laser methane and high-precision pressure
✓ Level 4 Alarm Mechanism
▮ Stable performance with low power consumption
✓ Lithium batteries offer low power consumption and a service life of 5 years
✓ Suitable for unattended scenarios
▮ Intelligent and efficient transmission
✓ 4G/NB wireless transmission
✓ Dual-mode positioning (Beidou/GPS)

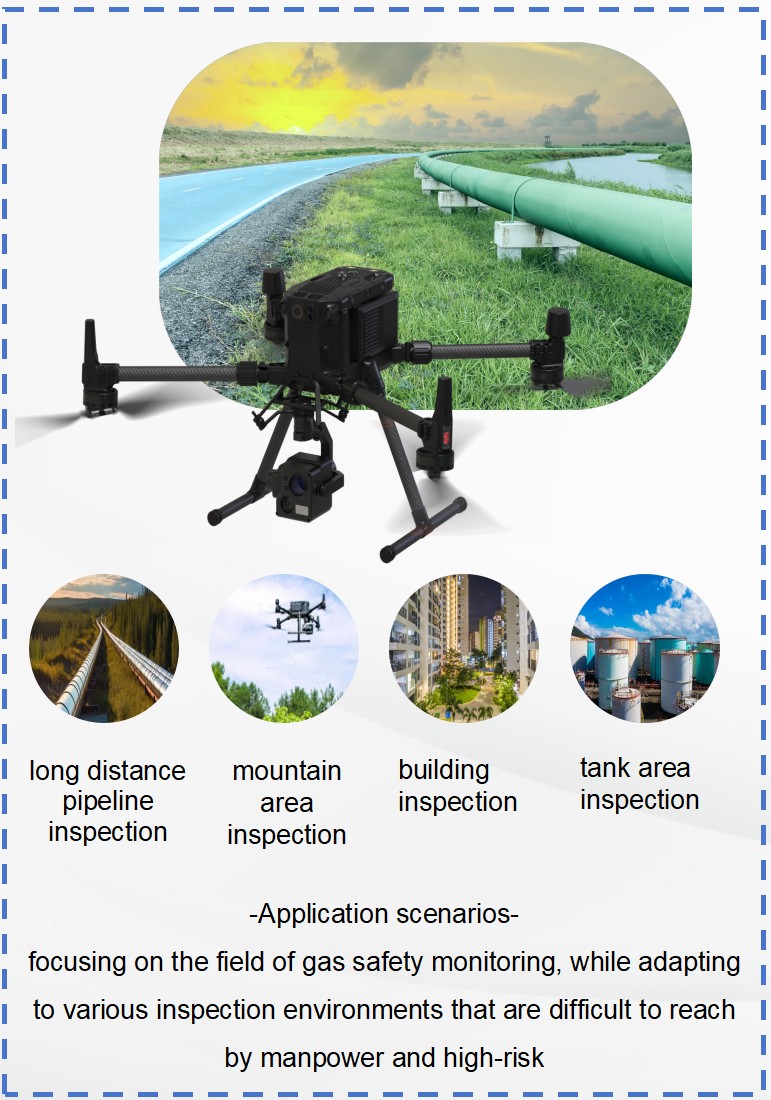

5.UAV Laser Inspection System
▮ Efficient Inspection
✓ Pre-set flight path for autonomous flight
✓ A single battery pack provides 40 minutes of flight time
▮ insurance
✓ Alternative to manual entry into high-risk areas
✓ Great Wall Fly Control + Automatic Obstacle Avoidance

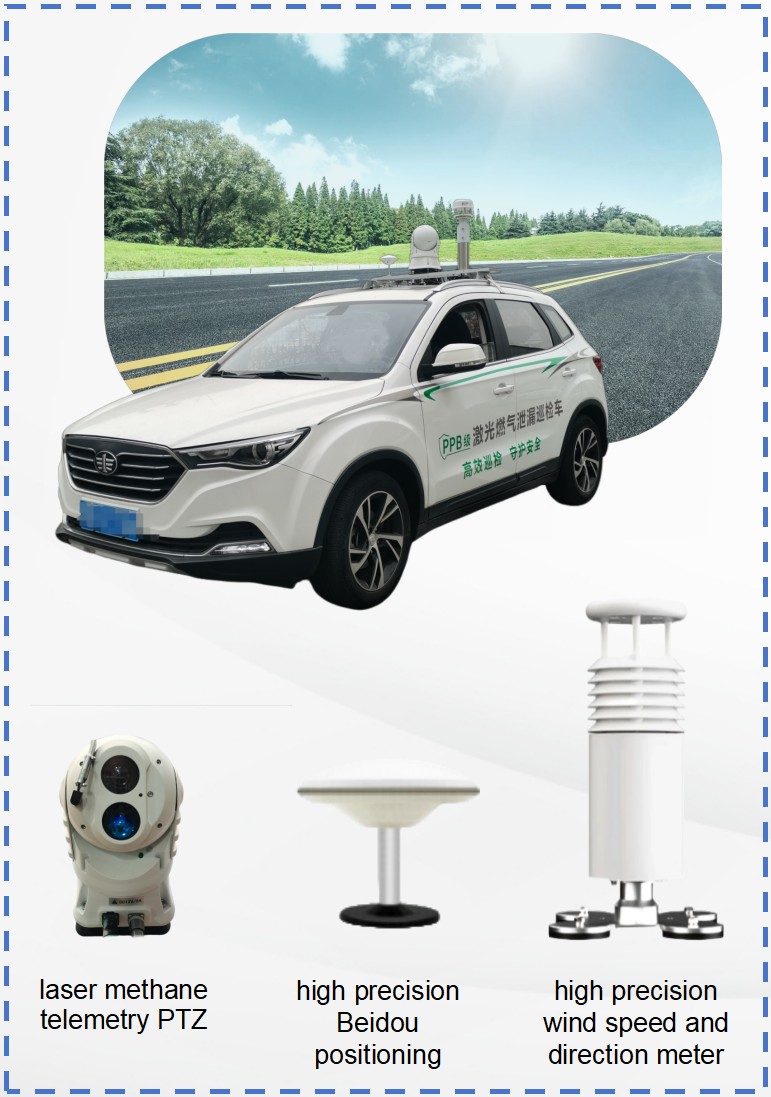

6. Vehicle-Borne Laser Inspection System
▎ PPB-level precise detection
✓ Mid-infrared laser absorption spectrum, at the PPB level
✓ Can identify ethane to avoid false alarms caused by methane vapor
▮ precise localization
✓ BeiDou meter-level positioning + wind direction and speed
✓ The algorithm accurately identifies leakage points.

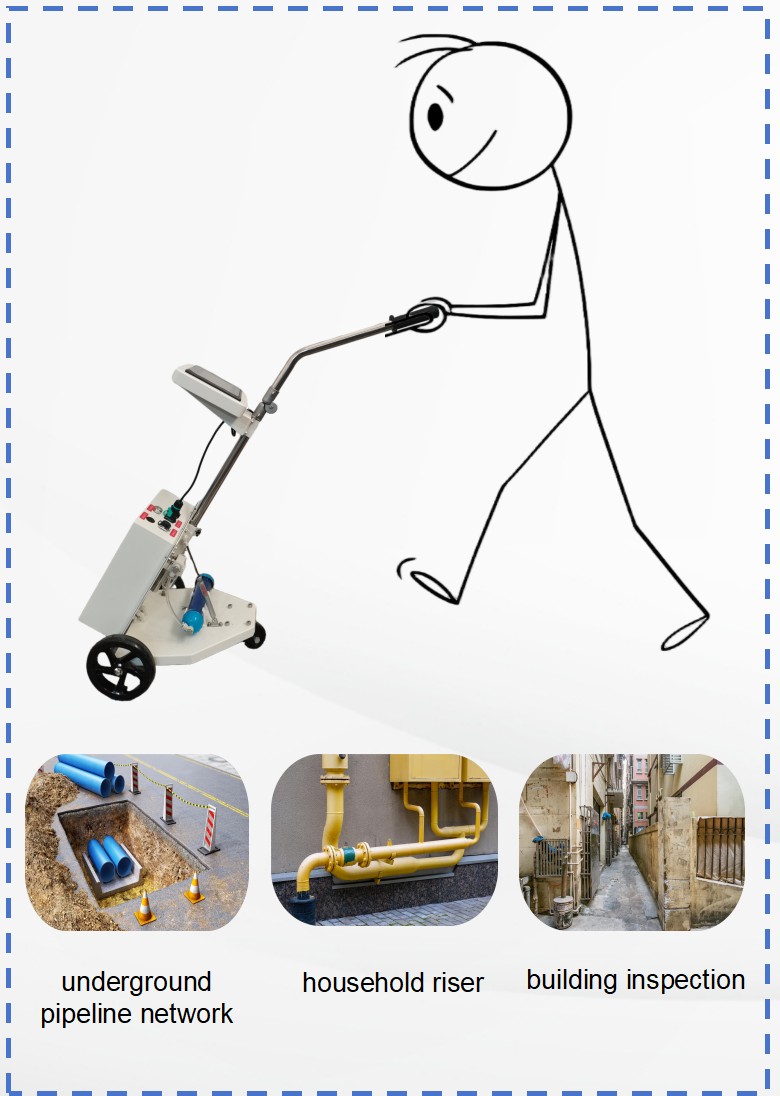

7. Handcart type inspection system
▮ Efficient and Rapid Detection
✓ High suction power with a response time of just 2 seconds
✓ Rapid detection of buried pipeline networks
▮ Precision Anti-interference
✓ Specific laser spectrum, responsive only to methane
✓ Built-in Self-Calibration
▮ Convenient and Smart
✓ Tests integrated hand carts to reduce labor intensity
✓ Compact size, suitable for complex environments
