1. Regulatory Authorities' Smart Platform
Policy-driven: The 2021 revision of the New Work Safety Law mandates the installation of combustible gas alarm devices in industries such as catering.
Security Status:
● The major gas explosion accident in Shibei North City: 26 deaths and 138 injuries
● The particularly severe accident at the Ningxia Yinchuan barbecue restaurant resulted in 31 deaths and 7 injuries.
● In 2022, liquefied gas accidents accounted for 56.1% of all incidents, with casualties representing 61.3%.
Platform Features:
● Centralized Device Operation Monitoring (Web/APP/WeChat/SMS)
● Real-time Alarm Notification and Response Tracking
● Big Data Analysis and Early Warning
● Overall Overview of Gas Safety Conditions at the City Level

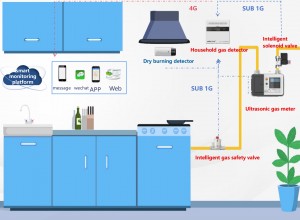

2.Household Gas Safety (Natural Gas via Pipeline)
system architecture ：
● New electromagnetic valves, intelligent safety valves, and home alarms are wirelessly connected via Sub-1G technology.
● The alarm detects an abnormality → triggers an alert → the system automatically cuts off the gas supply via wireless linkage.
● Report an incident via a mini-program, SMS, or voice notification
● The data is uploaded to the IoT monitoring platform via 4G/NB networks.

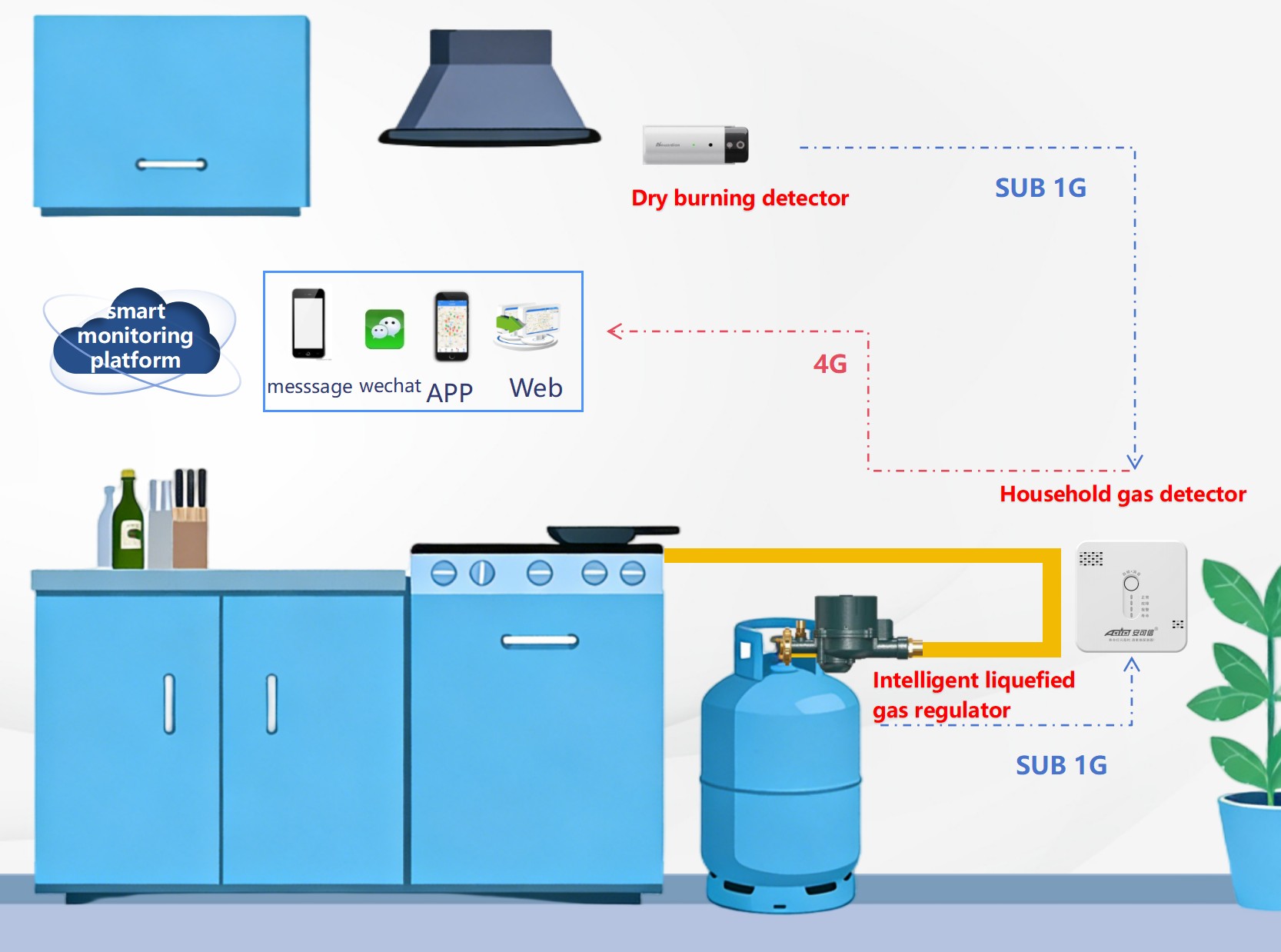

3. Household Gas Safety (bottled liquefied gas)
system architecture ：
● The intelligent liquefied gas pressure regulator, dry burn alarm, and household alarm are wirelessly connected.
● The alarm detects an abnormality → triggers an alert → the system automatically cuts off the gas supply via wireless linkage.

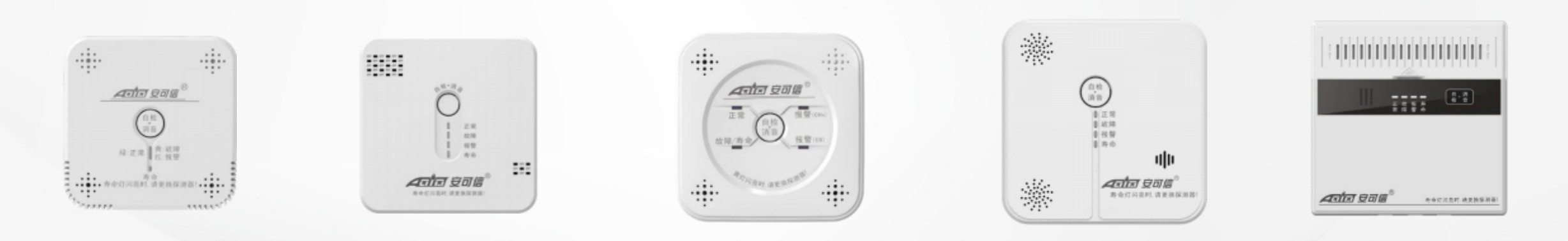

4. Household gas detector product system
Complies with GB15322.2-2019 standards and CCC requirements, supporting multiple communication protocols (e.g., NB-IoT, 4G, LoRa, Sub1G).
| product type | tracer gas | technical feature | Communication Configuration |
| Basic Semiconductor Industry Newspaper | natural gas | Semiconductor sensors: cost-effective and practical | Basic Communications |
| Semiconductor/Storage Industry News | Natural gas/Liquefied petroleum gas | Dual-sensing, dual-protection | NB/4G/LoRa optional |
| Composite Family Newspaper | Natural gas + Artificial gas | Storage and Semiconductor Composite Detection System | NB/4G/LoRa optional |
| Laser-based Family Newspaper | natural gas | TDLAS laser with zero false alarms and a lifespan of 10 years | Multi-communication configurable |
▮ Advantages of Laser-Based Home Detectors
● ✓ Interference-resistant with zero false positives: TDLAS technology responds exclusively to methane, eliminating false alarms caused by alcohol or cooking fumes.
● ✓ Long-lasting, calibration-free operation: No calibration required throughout the 10-year service life
● ✓ Smart Kitchen Ecosystem: As the central hub for remote control of all home security devices, Sub1G enables seamless wireless integration.

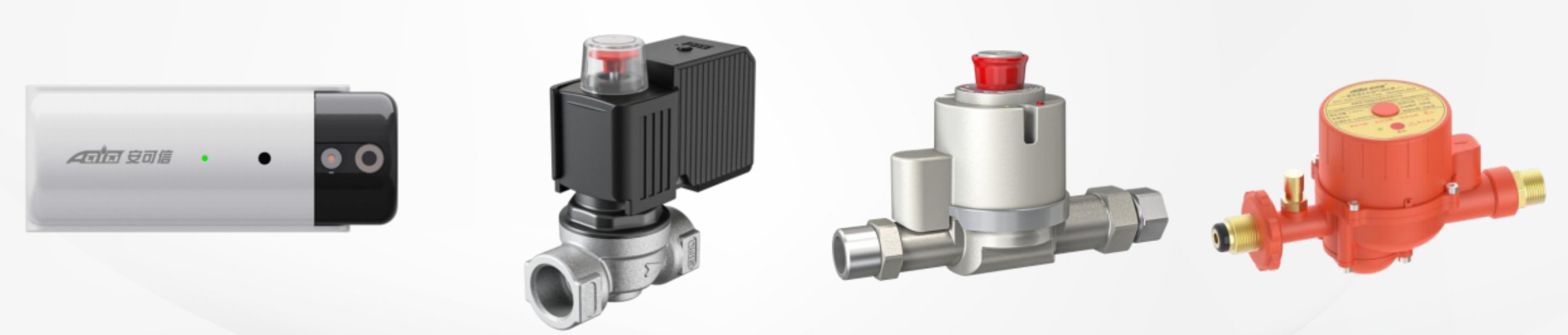

5. Supporting Products for the Gas Consumption Side
| product name | core technology | major function |
| Home Dry-Baking Alarm Device | 8x8 infrared thermal imaging matrix | 24-hour monitoring for precise temperature tracking of cooking utensils |
| New type of electromagnetic shut-off valve | Sub-1G wireless communication | Remote one-click valve closure with automatic linkage and cutting; penetrates walls up to 20 meters deep. |
| Intelligent Gas Safety Valve | Dual detection using both mechanical and chip-based methods | Automatic shut-off for overpressure, underpressure, or overcurrent; multi-valve control |
| Intelligent LPG Pressure Regulator | Pressure Flow Sensing | Precise pressure regulation, overcurrent protection, and flow anomaly monitoring |
| Ultrasonic Gas Meter | AEC-RQB Series | Volume: 1/3; Precision: Grade 1; Dual-channel measurement |
| Wireless Remote Control Box | Sub1G/Bluetooth/LoRa | Traditional devices can be quickly upgraded to support IoT functionality. |
6. Safety Solutions for Commercial and Industrial Kitchens
Application scenarios: Commercial kitchens, hot pot restaurants, canteens, and other industrial or commercial gas-using facilities.
▮ Precise and Reliable
✓ Laser sensor with high detection accuracy and long service life
✓ Modular sensors facilitate quick replacement
▮ Active Safety Closed Loop
✓ Detection → Alarm → Automatic valve closure → Linkage with fan
✓ A complete closed-loop system of "Detection – Alarm – Response"
▮ Remote Real-Time Monitoring
✓ Wireless remote transmission with real-time alarm alerts
✓ Plug-and-play compatible with 220V mains power
