Portable Toxic Gas Detector BT-AEC2689 Series Handheld Laser Methane Telemeter – Action
Portable Toxic Gas Detector BT-AEC2689 Series Handheld Laser Methane Telemeter – Action Detail:
Technical Parameters
|
Item |
Data |
|
Detected gas |
Methane |
|
Detected methods |
Remote detection |
|
Response time |
≤0.1s |
|
Detected distance |
0-150m |
|
Detected range |
0-100000ppm.m |
|
Detected laser grade |
Class I |
|
Indicate laser grade |
Class IIIR not look directly |
|
Continuous working hours |
≥8h |
|
Protection grade |
IP54 |
|
Explosion-proof grade |
Ex ib IIC T4 Gb |
|
Operating temperature |
-20℃～+50℃ |
Major Features
Strong anti-interference ability
It adopts advanced laser spectral analysis technology, which is responsive to methane and is not affected by temperature and humidity;
Millisecond response
Millisecond response time can greatly improve the efficiency and quality of user patrol inspection;
Ultra long distance telemetry
Ultra long distance telemetry makes it safe and convenient to inspect special and dangerous areas that are inaccessible or difficult to reach;
Simple operation
Only need to simply pull the trigger to easily detect without complex training;
LCD display function
Clear and intuitive LCD concentration display function (model C is color LCD display)；
Maintenance free
Since the internal laser device and optical structure are relatively stable, generally no maintenance is required；
Long lifetime
The service life can be up to 5-10 years, and the comprehensive use cost is low；
Bluetooth communication
Built-in Bluetooth communication function, with mobile phone APP can realize the functions of patrol track recording, concentration curve, log reading, etc.

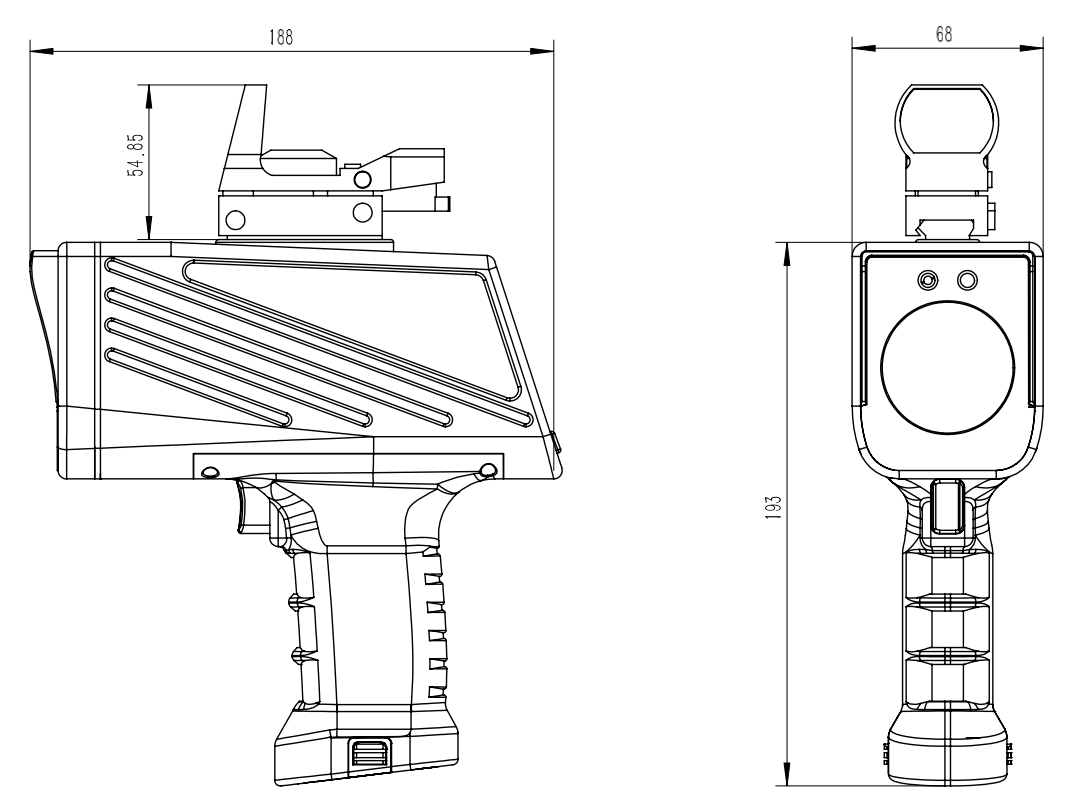

Boundary Dimension
Model Selection
|
Specification model |
Additional marking |
Detected distance |
Remark |
|
BT-AEC2689 |
/ |
0-30M |
Size: 145*173*72mm, Weight: 500g |
|
b |
0-50M, 0-80M |
Size: 242*190*94mm, Weight: 650g |
|
|
c |
0-100M, 0-150M |
Size: 193*188*68mm, Weight: 750g |
