In the world of industrial safety, the reliability of a fixed gas detector is non-negotiable. Chengdu Action’s AEC2232bX series stands as a testament to this principle, embodying cutting-edge technology and user-centric design to deliver unparalleled performance in the most demanding environments. This series is not just a product but a comprehensive solution for detecting a wide array of combustible and toxic gases.

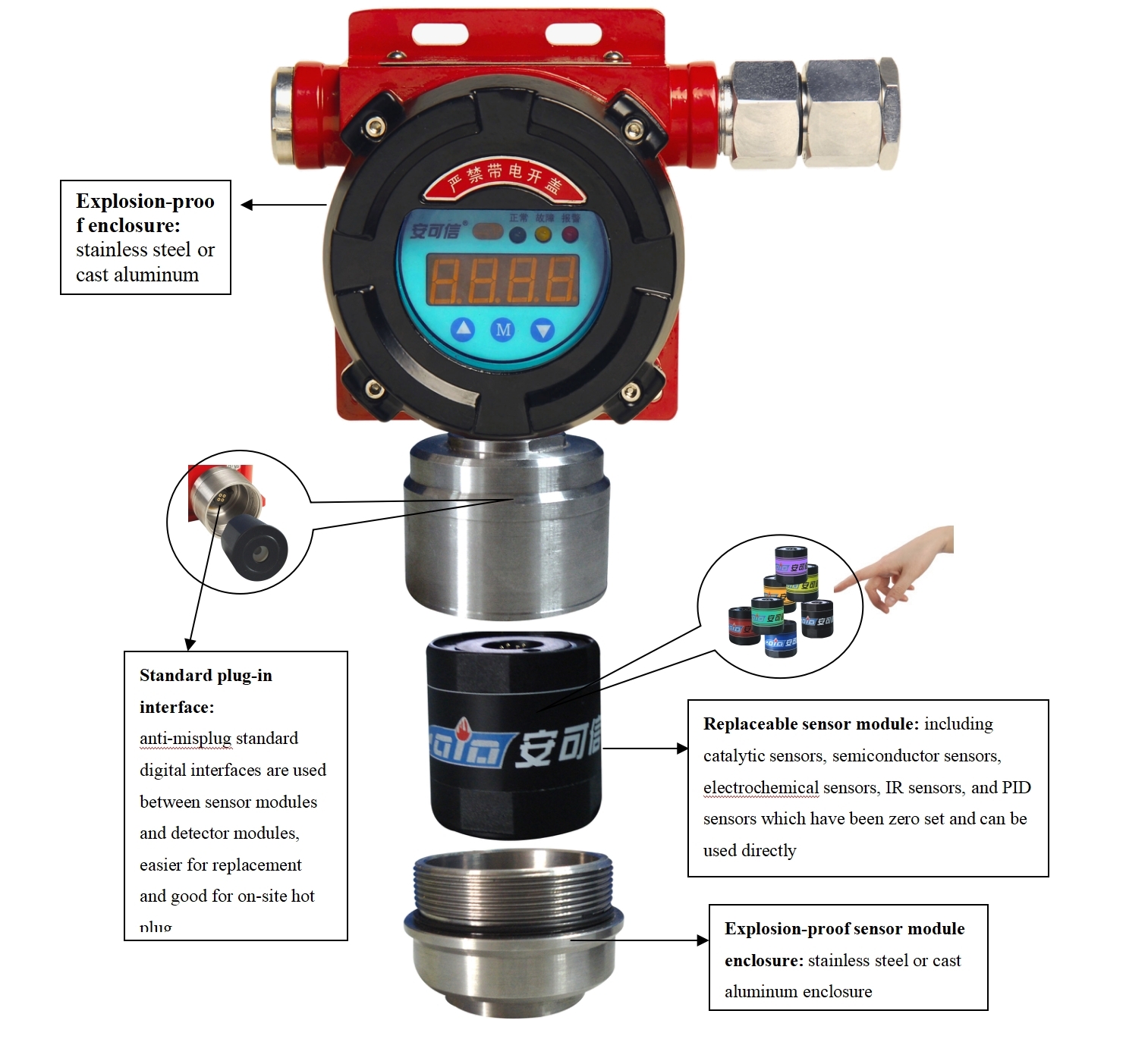

The core innovation of the AEC2232bX lies in its highly-integrated modular design. The system is split into two primary components: the detector module and the sensor module. This architecture allows for unprecedented flexibility and ease of maintenance. Sensor modules for over 200 different gases and various ranges can be replaced as easily as changing a light bulb. Thanks to a standardized digital interface and gold-plated, anti-misplug pins, these sensors can be hot-swapped in the field without the need for immediate recalibration, drastically reducing downtime and maintenance costs.

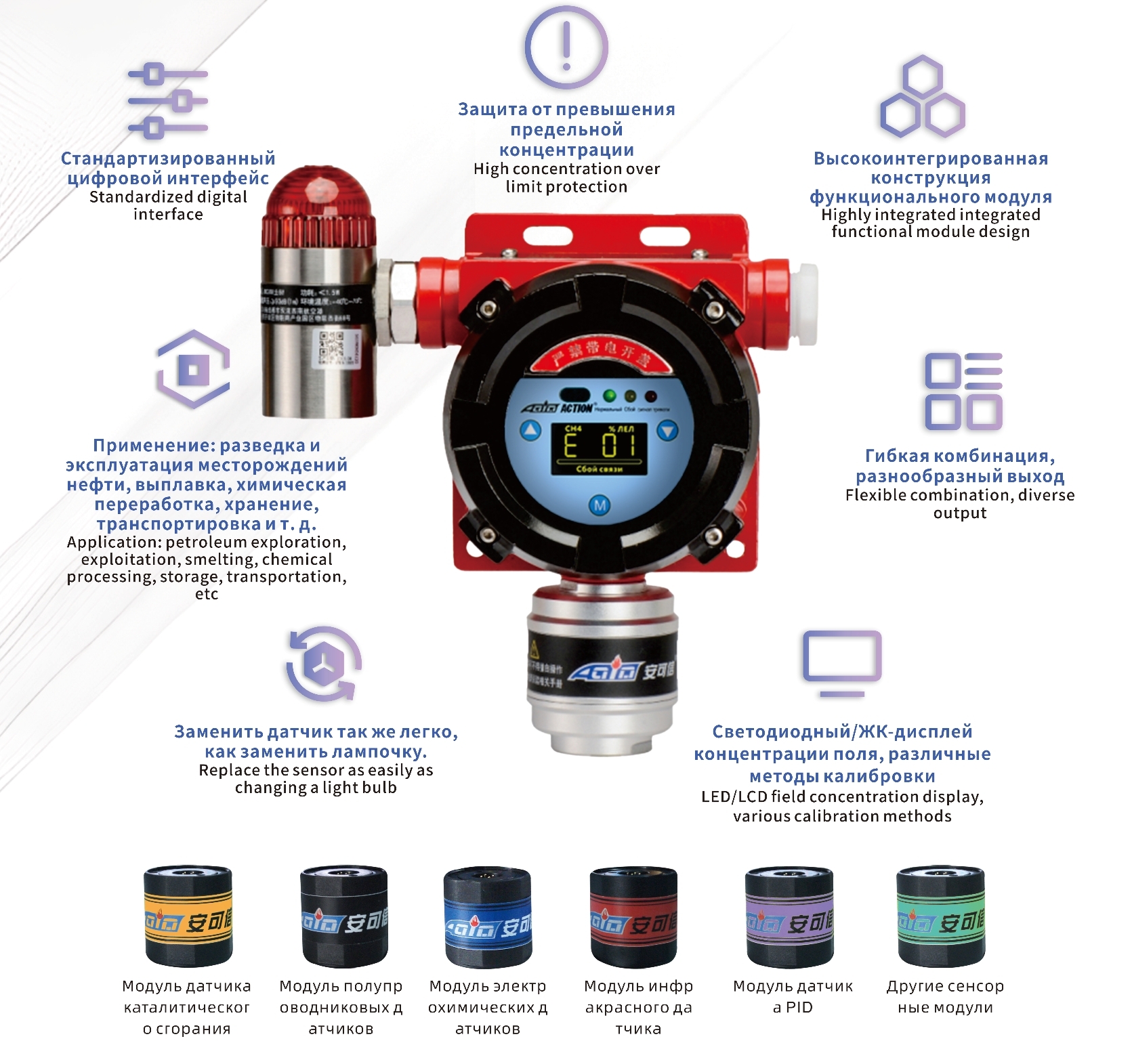

Key features that set the AEC2232bX series apart include:
● Diverse Sensor Technology: The series supports a multitude of sensor types, including Catalytic, Semiconductor, Electrochemical, Infrared (IR), and Photoionization (PID), ensuring the right technology is available for any specific gas detection need.
● High-Concentration Overlimit Protection: To prevent sensor damage and extend its lifespan, the module automatically cuts off power when exposed to gas concentrations beyond its limit, performing periodic checks until levels return to normal.
● Robust Construction: Housed in a cast aluminum or stainless steel shell with an IP66 protection grade and an ExdIICT6Gb explosion-proof rating, this industrial gas detector is built to withstand harsh industrial conditions.
● Clear On-site Display: A high-brightness LED/LCD provides real-time concentration display with a wide viewing angle, ensuring critical information is always visible. Calibration and settings can be adjusted easily via keys, an IR remote, or a magnetic bar.
“Our goal with the AEC2232bX was to create a fixed gas detector that is not only accurate but also intelligent and adaptable,” explains the Head of R&D. “The hot-swappable sensor module is a game-changer for our clients, offering both long-term cost savings and enhanced operational efficiency.”
By combining flexible design, advanced protection features, and robust construction, the AEC2232bX series from Chengdu Action is setting a new benchmark for safety and reliability in industrial gas detection, proving to be an indispensable asset for industries ranging from petrochemicals to manufacturing.
Post time: Jul-23-2025
